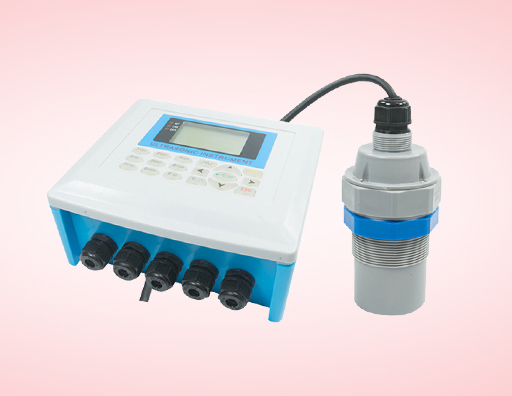

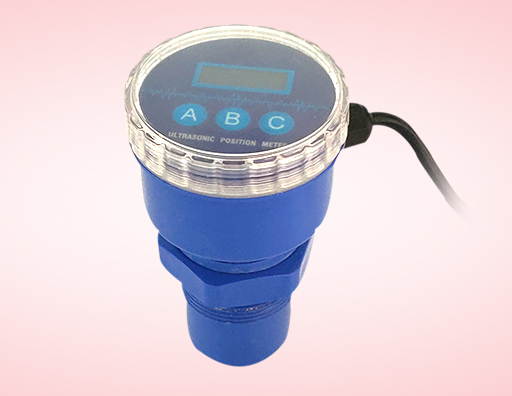

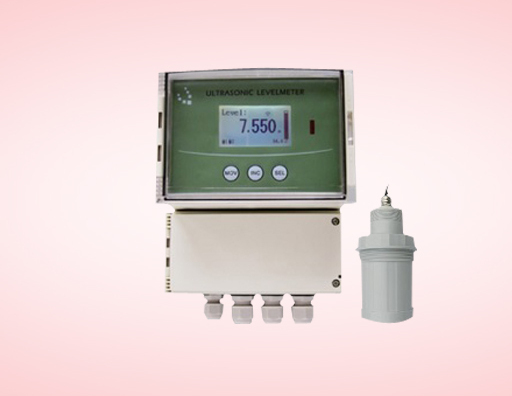

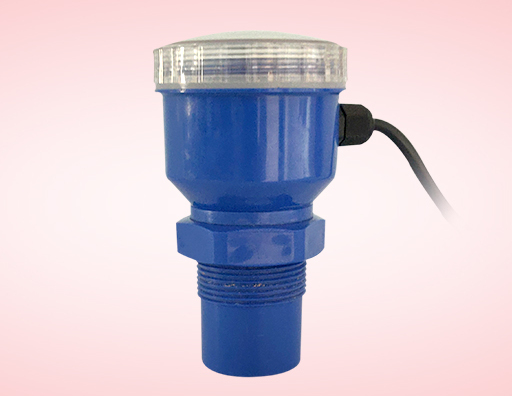

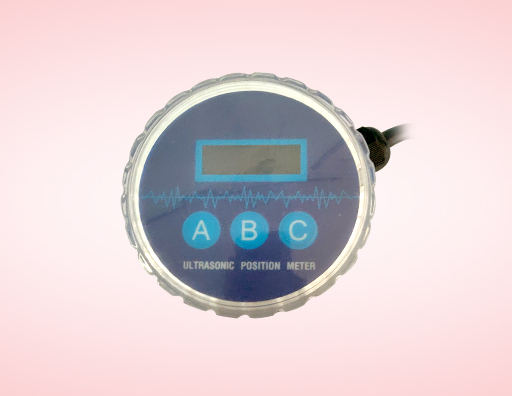

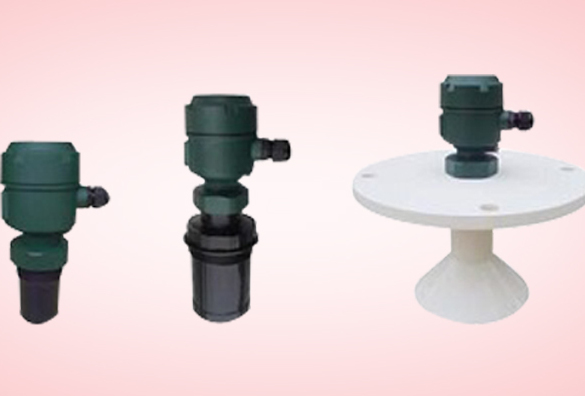

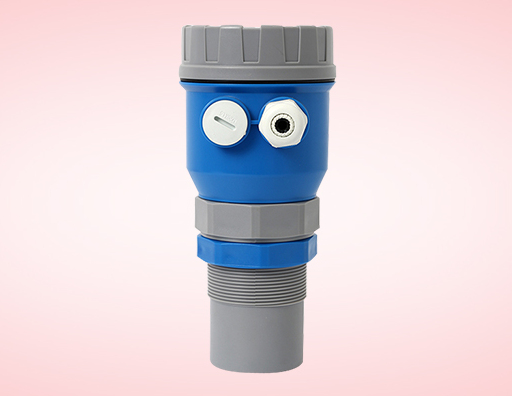

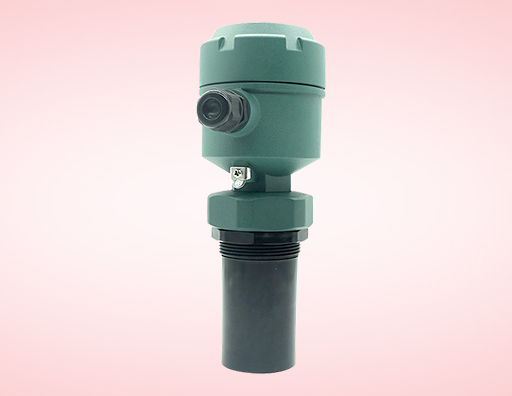

ULTRASONIC LEVEL TRANSMITTER



Ultrasonic level measuring instrument, taking the advantages of various many level measuring instruments, is a universal one characterized by total digitalized and humanized design. It has perfect level monitoring, data transmission and man-machine communication. It is featured by strong anti-interference performance; free setting of upper and lower limits and online output regulation, on-site indication, optional analog, switching value, and RS485 output and easy connection with main unit. The cover, made of waterproof engineering plastics, is small and firm with ABS probe. Therefore, it is applicable for various fields concerning level measuring and monitoring. According to the practical situation, it also can add other modules, such as RS 485, current output; it can be match with PLC better.




APPLICATIONS

  1. Proximity Detection
  2. Robot Range Finder
  3. Sedimentation Process
  4. Coal Washing Process
  5. Obstacle Detection,Collision avoidance
  6. General-Purpose Distance Detection
  7. Wastewater Treatment

FEATURES

  1. High Precise
  2. Non-Invasive
  3. Strong Anti-Interference
  4. Automatic Temperature Compensation
  5. Selectable Output Way
  6. Substantially Improved Long-Term Stability

SPECIFICATION

  • Full scale: 5m,10m,15m,20m,25m,30m
  • Max measure error: 1%xfull scale
  • Power: DC 12-30V power consumption: lessthen 1.5W
  • Frequency: 20 KHz∼43.0 KHz
  • Output signal: 4∼20mA(other output is optional)e
  • Max load impedance: 300Ω
  • Display panel: LED,LCD.
  • Material: ABS for shell,PP for transducer
  • Non-Invasive
  • Strong Anti-Interference
  • Automatic Temperature Compensation
  • Selectable Output Way
  • Substantially Improved Long-Term Stability
