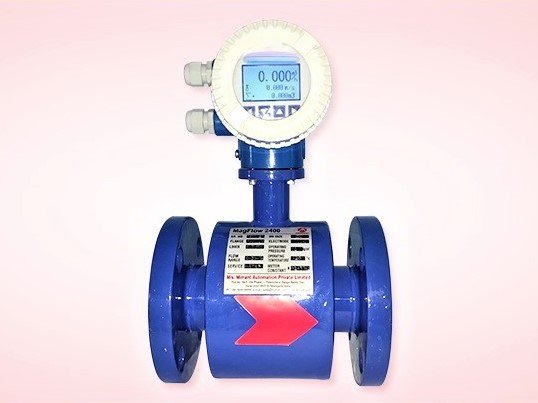

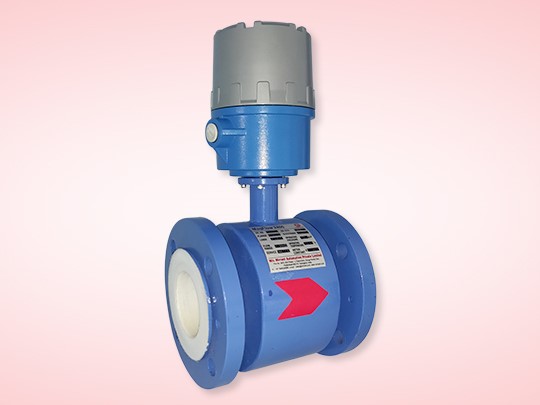

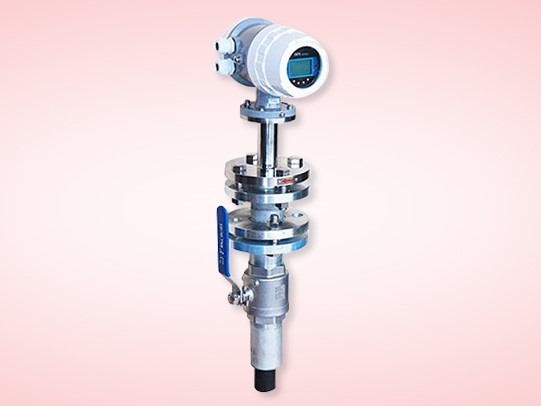

ELECTROMAGNETIC FLOW METER
The working principle of a magnetic flow meter is based on Faraday’s law of electromagnetic induction.
According to Faraday’s law, when the conductive fluid flows through a magnetic field of the sensor, an electromotive force proportional to the volume flow is generated between the pair of electrodes, which is perpendicular to the flow direction and the magnetic field.
The amplitude of the electromotive force can be expressed as:
E = kBDv
Where E:Induced electric potential,
K: constant,
B:Magnetic flux density,
D:The inner diameter of the measuring Tube,
V:The average velocity of the fluid in the
axial direction of the electrode cross-section inside
the measuring tube.
SPECIFICATION
| Medium | Domestic water, industrial water, raw water, ground water, urban sewage, industrial waste water, Processed neutral pulp, pulp slurry, Chemicals etc. |
|---|---|
| Diameter | DN10~DN2000mm |
| Accuracy | ±0.5% |
| Repeatability | ±0.2% of Span |
| Medium temperature | ＜180'C |
| Medium pressure (Kg/Cm2) | 10,16,25,40 |
| Flow rate | 0.3～10m/s |
| Electrode Material | SS316 Std.,Hastalloy C,Titanium,Tantalum,Platinum,etc |
| Lining Material | PTFE,Rubber,Neoprene,PFA,HDPE,Polyurethane,CPVC etc |
| Flow Tube Material | SS304 Std,SS316 |
| Coil House Material | Carbon steel,Stainless steel |
| Power supply | 230VAC,24VDC,Battery |
| Signal output | 4～20mA, Pulse and Relay |
| Communication Interface | RS485,GSM/GPRS,HART,LORA |

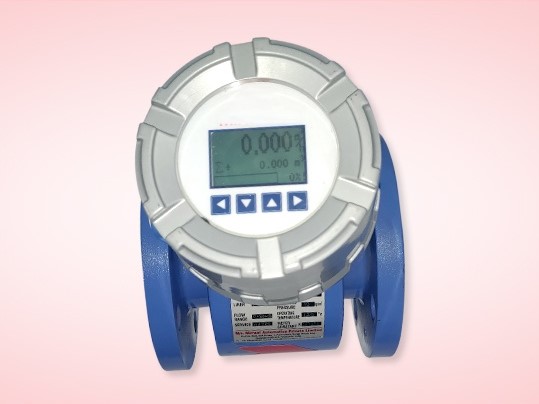

| Display | LCD Display In Engg.Units |
| Protection proof | IP65; IP67,IP68 |

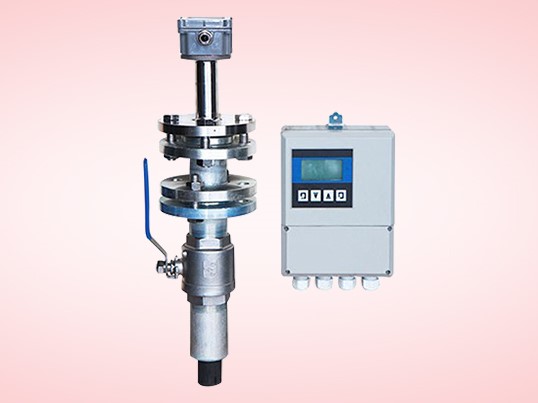

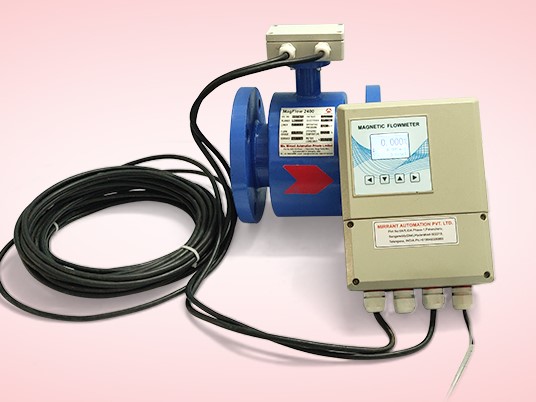

| Flow Transmitter | Integral, Remote |
| Enclosure Material | Die Cast Aluminium |
| Electrical Connection | 1/2" NPT |
| Work environment | Ambient temperature：-20～+60H，Ambient humidity：5%～90% |

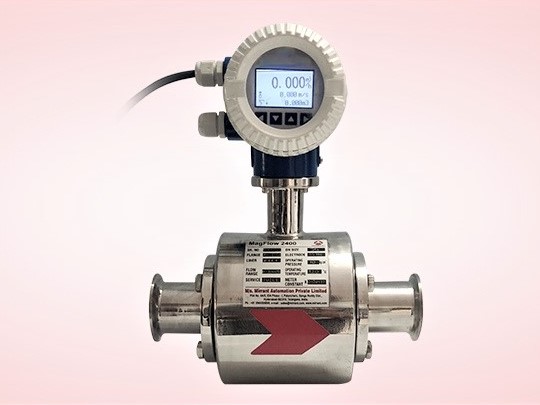

| End Connection | Flange-end, Wafer, Tri-Clover etc. |
