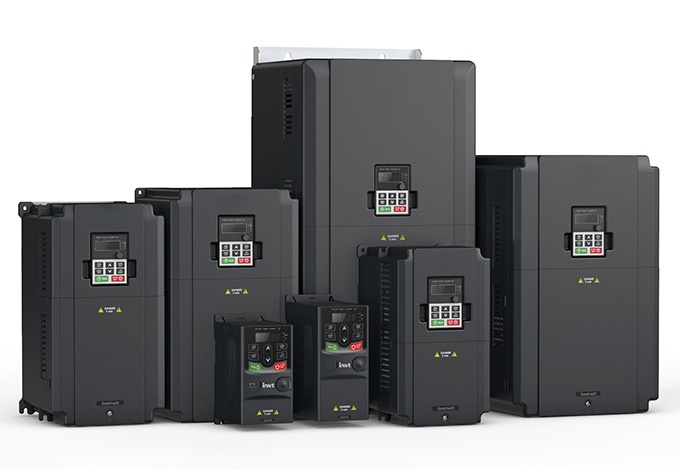

GD20 Series Open Loop Vector Control Drives
GD20 series inverters feature excellent drive and control performance for using of sensorless vector control technology, and improve usability and reliability for the enriched hardware configurations and software functions, meeting different industrial applications. GD20 series 18.5KW~110KW comes standard with built-in DC reactor, 18.5~37KW built-in standard brake unit, 45~110KW optional built-in brake unit, full range of independent air duct design, which improves product reliability and performance, and enhances product competitiveness.
Features：
1.Excellent Control Performance
2.Excellent vector control performance
3.Excellent motor drive performance
4.Excellent high-frequency running performance
5.Optimized Structure Designs

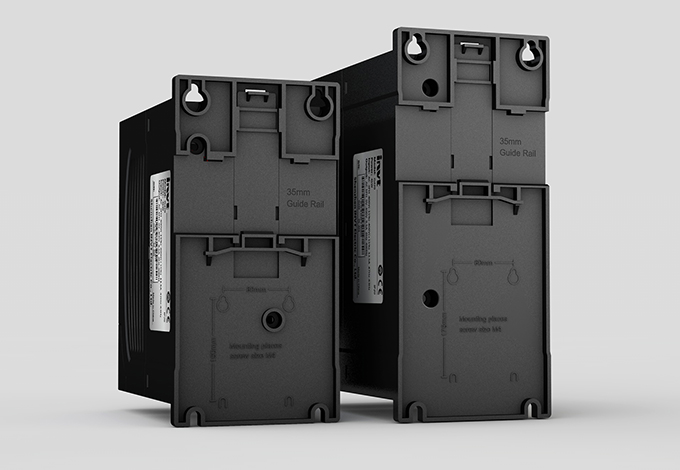

6.Flexible installation ways)
7.Multi-function and easy to use
Diverse Application Requirements:
Simple PLC, multi-speed control, built-in PID, torque control, multi-point V/F curve, multiple braking methods, instantaneous power failure without stopping, etc.
Applications:
Vector control platform products, powerful, excellent performance, can be widely used in small and medium power applications, such as food machinery, plastic machinery, ceramic equipment, petroleum machinery, cable machinery, air compressors, machine tools, woodworking machinery, textile machinery, printing and packaging equipment, chemical equipment, environmental protection equipment, transportation equipment, etc.

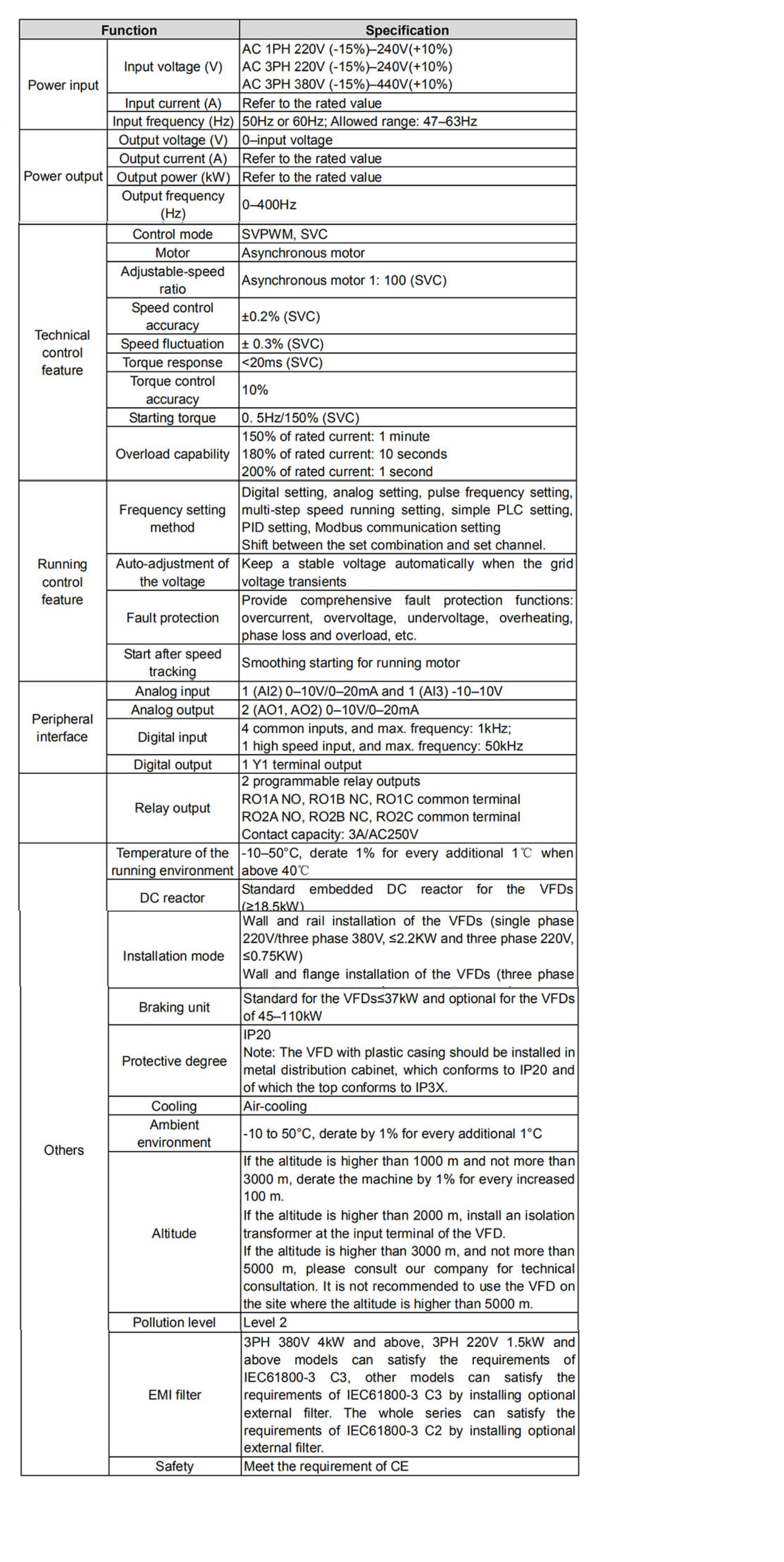

SPECIFICATION
